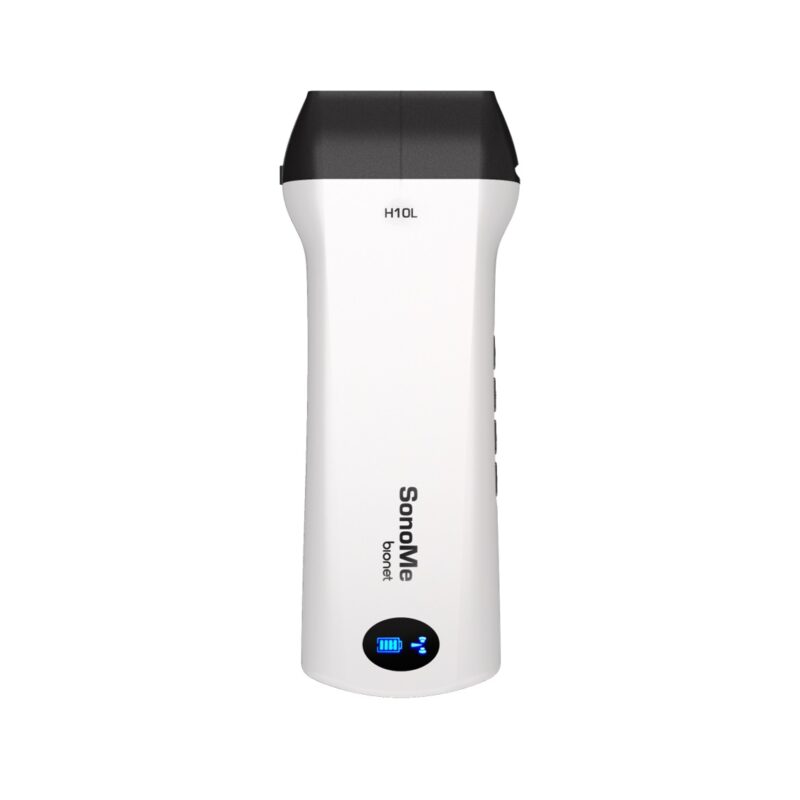

H10L Linear
Frequency: 7.5 – 10 MHz
Scanning Length: 40mm
Max Depth: 10cm
Element: 192
Weight: 200g
Mode: B, B/M, Color, PDI, PW
Specifications
| Overview |
Element: 192 Frequency: 7.5-10 MHz Depth: 20mm-100mm |
| Available Modes | B, B/M, Color, PDI, PW |
| Clinical Applications | Peripheral vessel, Superficial organ |
| Measures | Length, Area, Angle, Obstetrics, Blood flow velocity |
| Physical Characteristics |
Dimensions: 160 x 64 x 23mm Head Length: 40mm Weight: 200g |
| Mobile Platforms | Display: Tablet PC or Mobile Phone which supports iOS 8.0 or above, Android OS 7.0 or above. |
| Security and Encryption |
WiFi Type: 2.4G Band Supported Type: 802.11n(HT20) Local Storage: Yes DICOM: Yes |
| Charging and Bootup |
Battery Life: 5.0 hours Charging Mode: USB Charging |
| Operating Range |
Ambient Temperature 5°C to +35°C Relative Humidity 25% to 80%, non-condensing Atmospheric Pressure 700hPa to 1060hPa Max. Altitude 3000m |
