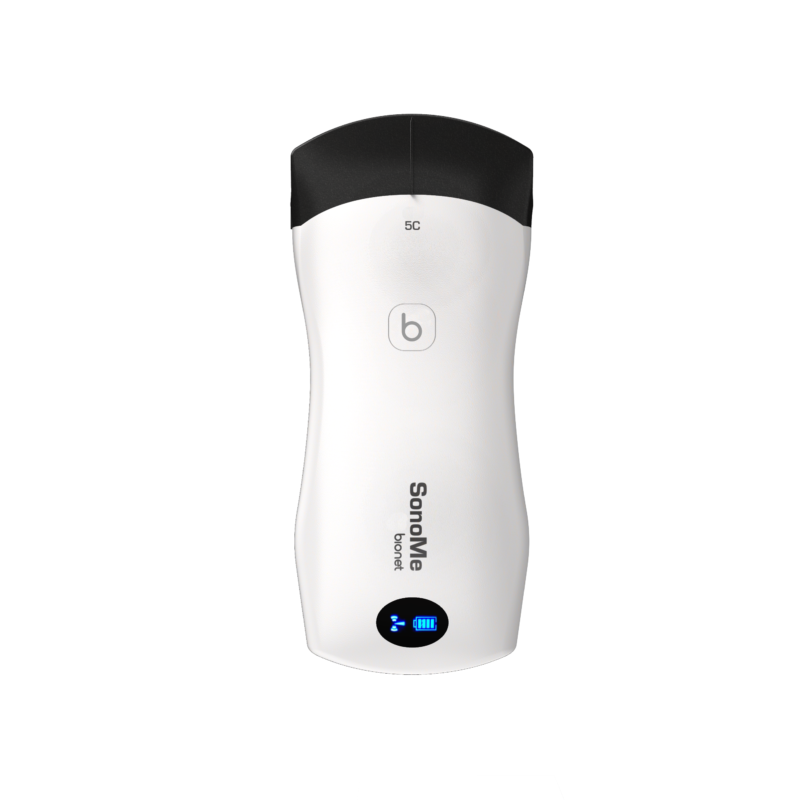

5C Convex
Frequency: 3.2 – 5 MHz
Scanning Radius: 60°
Max Depth: 30.5cm
Element: 128
Weight: 250g
Mode: B, B/M, Color, PDI, PW
제품사양
| Overview | Element: 128
Frequency: 3.2-5 MHz Depth: 90mm-305mm |
| Available Modes | B, B/M, Color, PDI, PW |
| Clinical Applications | Abdomen, Gynecology, Obstetrics |
| Measures | Length, Area, Angle, Obstetrics |
| Physical Characteristics | Dimensions: 157 x 67 x 29mm
Radius: 60° Weight: 250g |
| Mobile Platforms | Display: Tablet PC or Mobile Phone which supports iOS 8.0 or above, Android OS 7.0 or above. |
| Security and Encryption | WiFi Type: 2.4G Band
Supported Type: 802.11n(HT20) Local Storage: Yes DICOM: Yes |
| Charging and Bootup | Battery Life: 3.5 hours
Charging Mode: USB Charging |
| Operating Range | Ambient Temperature 5°C to +35°C
Relative Humidity 25% to 80%, non-condensing Atmospheric Pressure 700hPa to 1060hPa Max. Altitude 3000m |
