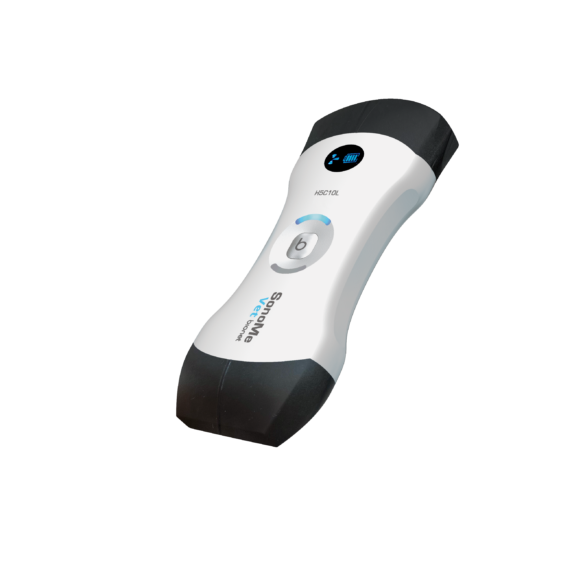

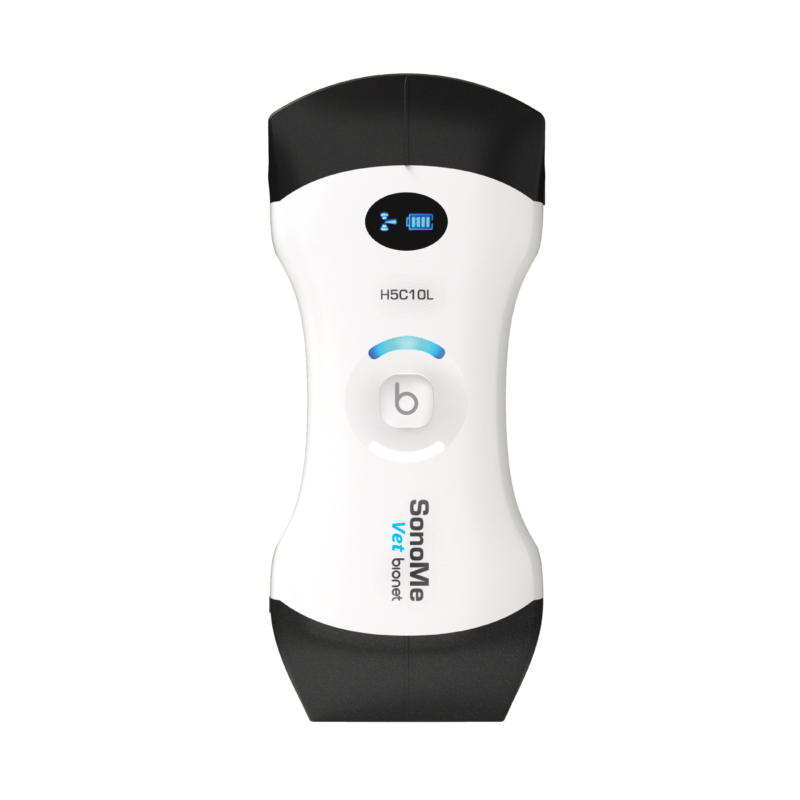

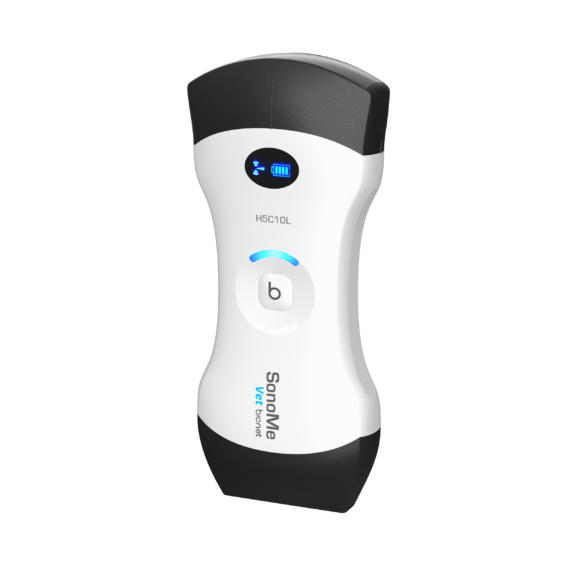

H5C10L Dual Head for VET
Frequency: 3.2 – 5 (Convex) / 7.5 – 10 MHz (Linear)
Scanning Radius/Length: 60° (Convex) / 40mm (Linear)
Max Depth: 30.5cm (Convex) / 8cm (Linear)
Element: 192
Weight: 250g
Mode: B, B/M, Color, PDI, PW
Specifications
| Overview |
Element: 192 Frequency: 3.2-5 MHz (Convex), 7.5-10 MHZ (Linear) Depth: 90mm-305mm (Convex), 20mm-80mm (Linear) |
| Available Modes | B, B/M, Color, PDI, PW |
| Clinical Applications | Abdomen, Gynecology, Obstetrics, Superficial vessel, Superficial organ |
| Measures | Length, Area, Angle, Obstetrics, Blood flow velocity |
| Physical Characteristics |
Dimensions: 159 x 69 x 29mm Radius: 60° (Convex) Head Length 40mm (Linear) Weight: 250g |
| Mobile Platforms | Display: Tablet PC or Mobile Phone which supports iOS 8.0 or above, Android OS 7.0 or above. |
| Security and Encryption |
WiFi Type: 2.4G Band Supported Type: 802.11n(HT20) Local Storage: Yes DICOM: Yes |
| Charging and Bootup |
Battery Life: 2.5 hours Charging Mode: Wireless Charging |
| Operating Range |
Ambient Temperature 5°C to +35°C Relative Humidity 25% to 80%, non-condensing Atmospheric Pressure 700hPa to 1060hPa Max. Altitude 3000m |
